Lighting the edges of cells
Determining lit areas is the same problem as determining visible areas. I reuse my existing vision system described here. A slight modification was required to handle the following complication.
In grid based games, when computing visible area, each cell is typically either completely visible or completely obscured. This is not sufficient when computing lit area. Consider the case where there is a wall between the player and some light source. The wall is lit on the opposite side to the player, but the player should see an unlit wall.

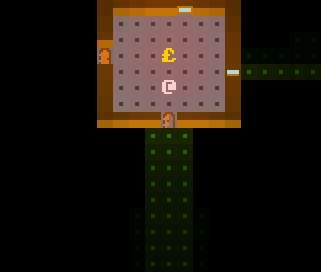

View from inside a well-lit room. The yellow "£" is the light source.
Since the direction from which a cell is lit now matters, the amount of light reaching each side of each cell must be tracked, rather than just determining whether or not a cell is lit. When an observer sees a cell, the vision system detects which sides of the cell they can see. The cell is drawn with a brightness based on the visible side with the most light reaching it.
Note that this only applies to opaque cells.

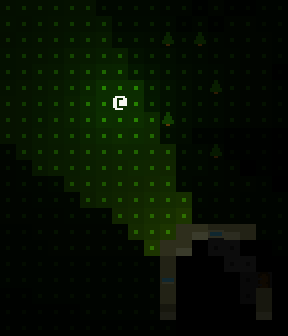

View from outside the same room shown above.
In order to correctly light the cells in the corners of rooms, the amount of light reaching the corners of cells is also tracked.
Areas unlit by certain lights

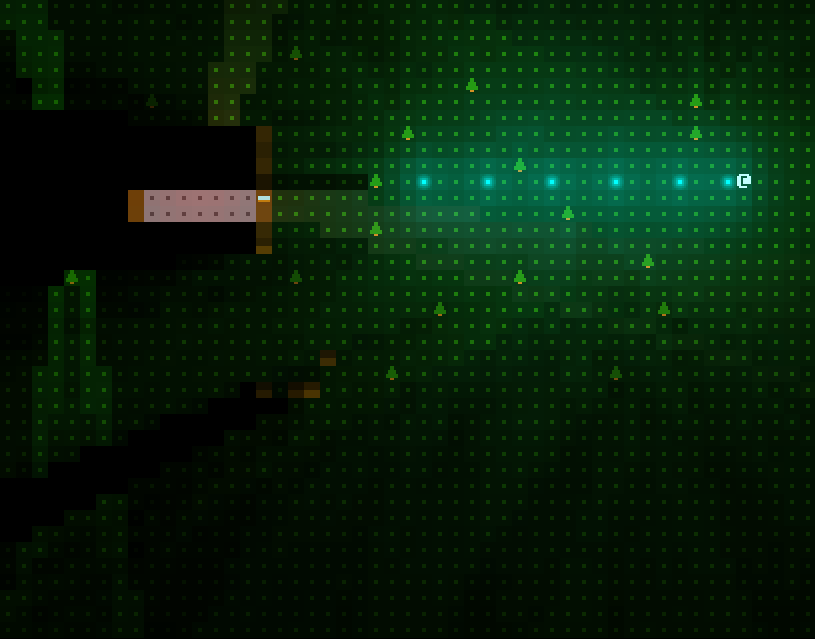

The demo includes a lighthouse with a spinning light on top. The walls of the lighthouse and its interior are unlit by the light on top. In practice, the entity providing the lighthouse’s light is in the centre of the lighthouse, and there is only one “level”. The effect of only certain areas being lit by certain lights is achieved by something I call light channels.

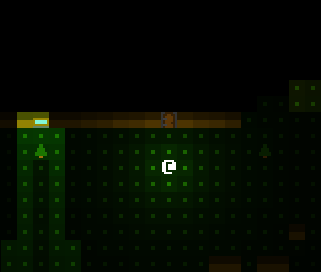

The wall of the lighthouse is not illuminated by the lighthouse's light.
A light channel is an integer. Each light source declares a collection of channels which it illuminates, and each entity with a tile declares a collection of channels which it can be illuminated by. A light source illuminates a tile if there is at least one channel in common between the light source and the tile. In practice this is implemented using bitfields.

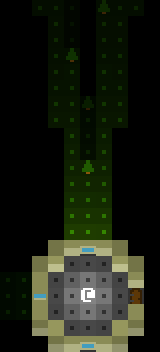

The interior of the lighthouse is illuminated by the player's light only.
Most entities with tiles, and most light sources, use all light channels. The lighthouse light uses only channel 0, and the lighthouse walls and floor use only channel 1. Thus, walls and floor of the lighthouse are not illuminated by the lighthouse light, but are still illuminated by other lights.
