Programming an Arduino the Hard Way

This is a guide I wrote mostly for my future self on how to set up an ergonomic development environment for writing Arduino programs in c without any Arduino-specific tools and using an Arduino to make a simple circuit with some flashing LEDs. I’ll also discus options for powering the Arduino from a 12v DC power supply.

For this guide I’ll be using one of these:

It’s an Elegoo Nano - a cheaper drop-in replacement for the Arduino Nano. The only noticeable differences are that the header pins don’t come pre-soldered, it doesn’t come with any cables and it has a different USB to serial chip (a CH340 instead of the FT232 found on the Arduino).

USB Serial Driver

The docs on the Elegoo website suggest that you’ll need to install special drivers in order for your computer to detect the Elegoo Nano when you plug it in with a USB cable. The necessary Linux driver is called ch341 and it’s probably already installed as a kernel module on most Linux distributions and it’s likely that it just work when you plug in the USB cable with the Arduino attached.

If not, here are some things to try.

Enable the kernel module explicitly. If this fails it indicates that you don’t have the ch341 kernel module installed and may have to install it with a package manager or build it from source.

$ sudo modprobe ch341
$ lsmod | grep ch341
ch341                  28672  0
usbserial              73728  2 pl2303,ch341
usbcore               385024  13 pl2303,usbserial,xhci_hcd,snd_usb_audio,usbhid,snd_usbmidi_lib,xpad,usb_storage,uvcvideo,btusb,xhci_pci,uas,ch341

When you connect the Elegoo Nano via a USB cable, you’ll see this in the output of dmesg:

...
[210724.817737] usb 1-6: new full-speed USB device number 23 using xhci_hcd
[210724.958846] usb 1-6: New USB device found, idVendor=1a86, idProduct=7523, bcdDevice= 2.64
[210724.958853] usb 1-6: New USB device strings: Mfr=0, Product=2, SerialNumber=0
[210724.958856] usb 1-6: Product: USB Serial
[210724.967993] ch341 1-6:1.0: ch341-uart converter detected
[210724.981915] usb 1-6: ch341-uart converter now attached to ttyUSB0

After plugging in the device you should see a new device file /dev/ttyUSB0. This will be used later on both to program the device and also to see the output when printing messages over the serial port.

If nothing happens when you plug in the device, try a different cable (the first one I used didn’t work for some reason). If your Linux kernel didn’t come with the ch341 module try building and loading the ch341ser module from here.

Note that even though I’m technically not using an Arduino, I’ll be referring to the device as an Arduino for the remainder of this post!

Get the Tools

We won’t be using the Arduino IDE but we still need to install some tools. Namely:

avr-gcc

A c compiler targeting AVR processors such as the one found in the Arduino.

make

Minimal build system.

avrdude

Tool for downloading code to AVR processors such as the one found in the Arduino.

picocom

Tool for sending and receiving data over a serial port. This will be used to connect to the Arduino so we can see the messages it prints.

clangd

A Language Server Protocol (LSP) server for c. This will allow for some ergonomics such as jumping to function definitions in editors that contain an LSP client (e.g. vscode, neovim with the LanguageClient-neovim plugin). This might be found in a package named clang-tools if no clangd package is available in your distro.

bear

bear is a tool for generating compilation databases (compile_commands.json) from a Makefile.

avr-libc

The standard c library for AVR devices. In some Linux distros this will come with avr-gcc but on others it will need to be installed separately.

Print “Hello, World!”

The code for this section is here.

Put this in main.c. This program implements a very simple serial (USART) driver for the Arduino and uses it to print Hello, World! with printf:

// main.c
#include <stdio.h>
#include <avr/io.h>

// The arduino clock is 16Mhz and the USART0 divides this clock rate by 16
#define USART0_CLOCK_HZ 1000000
#define BAUD_RATE_HZ 9600
#define UBRR_VALUE (USART0_CLOCK_HZ / BAUD_RATE_HZ)

// Send a character over USART0.
int USART0_tx(char data, struct __file* _f) {
    while (!(UCSR0A & (1 << UDRE0))); // wait for the data buffer to be empty
    UDR0 = data; // write the character to the data buffer
    return 0;
}

// Create a stream associated with transmitting data over USART0 (this will be
// used for stdout so we can print to a terminal with printf).
static FILE uartout = FDEV_SETUP_STREAM(USART0_tx, NULL, _FDEV_SETUP_WRITE);

void USART0_init( void ) {
    UBRR0H = (UBRR_VALUE >> 8) & 0xF; // set the high byte of the baud rate
    UBRR0L = UBRR_VALUE & 0xFF; // set the low byte of the baud rate
    UCSR0B = 1 << TXEN0; // enable the USART0 transmitter
    UCSR0C = 3 << UCSZ00; // use 8-bit characters
    stdout = &uartout;
}

int main(void) {
    USART0_init();
    printf("Hello, World!\r\n");
    return 0;
}

Compile the code to an elf file. atmega328p is the name of the microcontroller on the Arduino Nano but other devices may have a different microcontroller.

$ avr-gcc -mmcu=atmega328p main.c -o hello.elf

Flash the Arduino. Plug it in with a USB cable, then run the following command. Replace /dev/ttyUSB0 with the device associated with the Arduino’s serial port (if you have multiple USB serial devices plugged in it might get assigned a different device file). Also as with the avr-gcc command above, replace m328p with the part number of the microcontroller on your Arduino. avrdude uses a different naming convention to avr-gcc.

$ sudo avrdude -P /dev/ttyUSB0 -c arduino -p m328p -U flash:w:hello.elf

avrdude: AVR device initialized and ready to accept instructions
avrdude: device signature = 0x1e950f (probably m328p)
avrdude: Note: flash memory has been specified, an erase cycle will be performed.
         To disable this feature, specify the -D option.
avrdude: erasing chip
avrdude: reading input file hello.elf for flash
         with 390 bytes in 1 section within [0, 0x185]
         using 4 pages and 122 pad bytes
avrdude: writing 390 bytes flash ...

Writing | ################################################## | 100% 0.10 s

avrdude: 390 bytes of flash written
avrdude: verifying flash memory against hello.elf

Reading | ################################################## | 100% 0.06 s

avrdude: 390 bytes of flash verified

avrdude done.  Thank you.

To see the output of this program you’ll need to use a tool that prints data received over a serial connection. I’ll use picocom in this guide. Run the following command, replacing /dev/ttyUSB0 with the device file associated with the Arduino.

$ sudo picocom -b9600 /dev/ttyUSB0
picocom v3.2a

port is        : /dev/ttyUSB0
flowcontrol    : none
baudrate is    : 9600
parity is      : none
databits are   : 8
stopbits are   : 1
escape is      : C-a
local echo is  : no
noinit is      : no
noreset is     : no
hangup is      : no
nolock is      : no
send_cmd is    : /nix/store/sy0ipq6qy2slql25lbax77i4315bynzp-lrzsz-0.12.20/bin/sz -vv
receive_cmd is : /nix/store/sy0ipq6qy2slql25lbax77i4315bynzp-lrzsz-0.12.20/bin/rz -vv -E
imap is        :
omap is        :
emap is        : crcrlf,delbs,
logfile is     : none
initstring     : none
exit_after is  : not set
exit is        : no

Type [C-a] [C-h] to see available commands
Terminal ready
Hello, World!

To exit picocom, press Ctrl-a, then Ctrl-x.

When the Arduino is plugged in via its USB port, connecting to it with picocom (running the sudo picocom ... command) will cause the device to reset, so you won’t miss the “Hello, World!” message if you don’t connect fast enough. You can also reset the Arduino by pressing the button near its built-in LEDs.

Also note the -b9600 sets the baud rate which corresponds to the line #define BAUD_RATE_HZ 9600 in the program.

Another note on picocom is that you won’t be able to download code to the Arduino (the avrdude command) while connected to the device with picocom. Exit picocom (Ctrl-a, then Ctrl-x) before running avrdude.

So that we don’t have to manually run avr-gcc every time we compile the code, create a Makefile with the following contents:

# Makefile
TARGET=hello

SRC=main.c
OBJ=$(SRC:.c=.o)

CC=avr-gcc
MCU=atmega328p

# The --param=min-pagesize=0 argument is to fix the error:
# error: array subscript 0 is outside array bounds of ‘volatile uint8_t[0]’
#        {aka ‘volatile unsigned char[]’}
# ...which is incorrectly reported in some versions of gcc
CFLAGS=-mmcu=$(MCU) -std=c99 -Werror -Wall --param=min-pagesize=0

$(TARGET).elf: $(OBJ)
	$(CC) $(CFLAGS) $(OBJ) -o $@

%.o : %.c
	$(CC) $(CFLAGS) -c -o $@ $<

clean:
	rm -rf *.o *.elf

Note that this also enables more warnings and works around a problem where avr-gcc would incorrectly report an error.

Now to rebuild the hello.elf binary after changing the code you can simply run:

$ make
avr-gcc -mmcu=atmega328p -std=c99 -Werror -Wall --param=min-pagesize=0 -c -o main.o main.c
avr-gcc -mmcu=atmega328p -std=c99 -Werror -Wall --param=min-pagesize=0 main.o -o hello.elf

Jump to Definition and other ergonomics with LanguageClient-neovim and clangd

I won’t cover setting up an LSP client here as there are too many different editors and plugins to choose from, but for an example neovim LSP setup using the LanguageClient-neovim plugin, see my neovim config.

For the LSP server we’ll use clangd. As long as clangd is installed and your editor is correctly configured, your editor should take care of starting and stopping clangd in the background. To check that it’s installed try running the command clangd.

For clangd to work correctly it needs to know how you intend on compiling the code. It finds this out by reading a file compile_commands.json that lists the commands used to compile the code. There are various ways of generating this file and since it will contain absolute paths it’s not advised to check it into the project. One way of generating compile_commands.json is with a tool called bear.

bear can generate a compile_commands.json from an invocation of make by watching what commands are run. For example (the working directory is /home/s/src/hello-avr):

$ bear -- make --always-make
avr-gcc -mmcu=atmega328p -std=c99 -Werror -Wall --param=min-pagesize=0 -c -o main.o main.c
avr-gcc -mmcu=atmega328p -std=c99 -Werror -Wall --param=min-pagesize=0 main.o -o hello.elf

$ cat compile_commands.json
[
  {
    "arguments": [
      "/usr/bin/avr-gcc",
      "-mmcu=atmega328p",
      "-std=c99",
      "-Werror",
      "-Wall",
      "--param=min-pagesize=0",
      "-c",
      "-o",
      "main.o",
      "main.c"
    ],
    "directory": "/home/s/src/hello-avr",
    "file": "/home/s/src/hello-avr/main.c",
    "output": "/home/s/src/hello-avr/main.o"
  }
]

The --always-make argument to make tells it to unconditionally run the build commands and removes the need to run make clean first.

On some systems, this is sufficient to allow an LSP client to do code navigation and other ergonomic features.

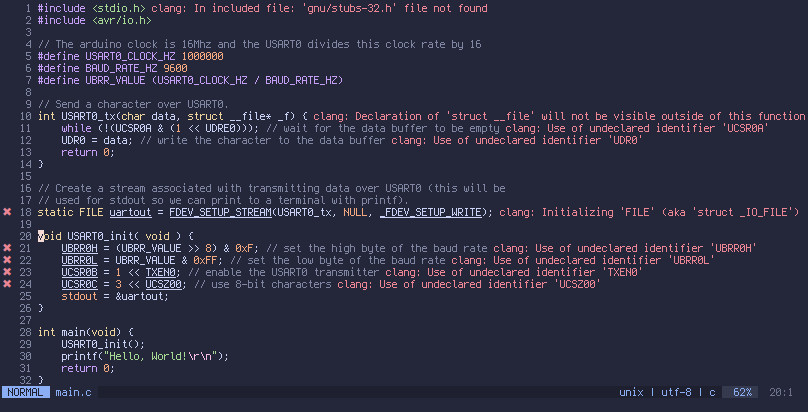

I’ve tested this on Alpine Linux and NixOS. On the former, LSP features worked as expected at this point and no further configuration was necessary, but on NixOS I had some errors from clangd when opening main.c in a text editor with LSP support:

It’s not immediately clear from the error messages but this problem is caused by the LSP server (clangd) being unable to locate the header file <avr/io.h>.

Since this problem is easy to reproduce on NixOS, we’ll start by looking at the contents of compile_commands.json on NixOS:

[
  {
    "arguments": [
      "/nix/store/pfxqwrvm0y6lbs53injrl4sqz2njrpyl-avr-stage-final-gcc-wrapper-12.2.0/bin/avr-gcc",
      "-mmcu=atmega328p",
      "-std=c99",
      "-Werror",
      "-Wall",
      "--param=min-pagesize=0",
      "-c",
      "-o",
      "main.o",
      "main.c"
    ],
    "directory": "/home/s/src/hello-avr",
    "file": "/home/s/src/hello-avr/main.c",
    "output": "/home/s/src/hello-avr/main.o"
  }
]

Let’s try manually adding some extra include paths to help clangd find <avr/io.h>. Since the code compiles when we run make, avr-gcc must be finding headers successfully. We can ask avr-gcc to print out its additional include paths with this command:

$ avr-gcc -E -Wp,-v - < /dev/null
ignoring duplicate directory "/nix/store/fh0ccmn4vv7hncyfic4ph3hx34vmzsih-avrdude-7.1/include"
ignoring duplicate directory "/nix/store/fh0ccmn4vv7hncyfic4ph3hx34vmzsih-avrdude-7.1/include"
ignoring duplicate directory "/nix/store/fh0ccmn4vv7hncyfic4ph3hx34vmzsih-avrdude-7.1/include"
ignoring nonexistent directory "/nix/store/ss76yfg4wj01ha9rjjgkr4qg0g76ivpa-avr-stage-final-gcc-12.2.0/lib/gcc/avr/12.2.0/../../../../avr/sys-include"
ignoring nonexistent directory "/nix/store/ss76yfg4wj01ha9rjjgkr4qg0g76ivpa-avr-stage-final-gcc-12.2.0/lib/gcc/avr/12.2.0/../../../../avr/include"
ignoring duplicate directory "/nix/store/ss76yfg4wj01ha9rjjgkr4qg0g76ivpa-avr-stage-final-gcc-12.2.0/lib/gcc/avr/12.2.0/include-fixed"
#include "..." search starts here:
#include <...> search starts here:
 /nix/store/fh0ccmn4vv7hncyfic4ph3hx34vmzsih-avrdude-7.1/include
 /nix/store/ss76yfg4wj01ha9rjjgkr4qg0g76ivpa-avr-stage-final-gcc-12.2.0/lib/gcc/avr/12.2.0/include
 /nix/store/ss76yfg4wj01ha9rjjgkr4qg0g76ivpa-avr-stage-final-gcc-12.2.0/lib/gcc/avr/12.2.0/include-fixed
 /nix/store/r2jr0x50g79spg2ncm5kjmw74n7gvxzg-avr-libc-avr-2.1.0/avr/include
End of search list.
# 0 "<stdin>"
# 0 "<built-in>"
# 0 "<command-line>"
# 1 "<stdin>"

The 4 lines after #include <...> search starts here: are the paths we’re interested in. We can probably skip the first one as it’s related to avrdude but including it won’t hurt and just adding all the extra include paths simplifies the process compared to adding a select few. Manually editing compile_commands.json to explicitly add these include files results in:

[
  {
    "arguments": [
      "/nix/store/pfxqwrvm0y6lbs53injrl4sqz2njrpyl-avr-stage-final-gcc-wrapper-12.2.0/bin/avr-gcc",
      "-mmcu=atmega328p",
      "-std=c99",
      "-Werror",
      "-Wall",
      "--param=min-pagesize=0",
      "-c",
      "-o",
      "main.o",
      "main.c",
      "-I/nix/store/fh0ccmn4vv7hncyfic4ph3hx34vmzsih-avrdude-7.1/include",
      "-I/nix/store/ss76yfg4wj01ha9rjjgkr4qg0g76ivpa-avr-stage-final-gcc-12.2.0/lib/gcc/avr/12.2.0/include",
      "-I/nix/store/ss76yfg4wj01ha9rjjgkr4qg0g76ivpa-avr-stage-final-gcc-12.2.0/lib/gcc/avr/12.2.0/include-fixed",
      "-I/nix/store/r2jr0x50g79spg2ncm5kjmw74n7gvxzg-avr-libc-avr-2.1.0/avr/include"
    ],
    "directory": "/home/s/src/hello-avr",
    "file": "/home/s/src/hello-avr/main.c",
    "output": "/home/s/src/hello-avr/main.o"
  }
]

Note the extra 4 -I... arguments to avr-gcc.

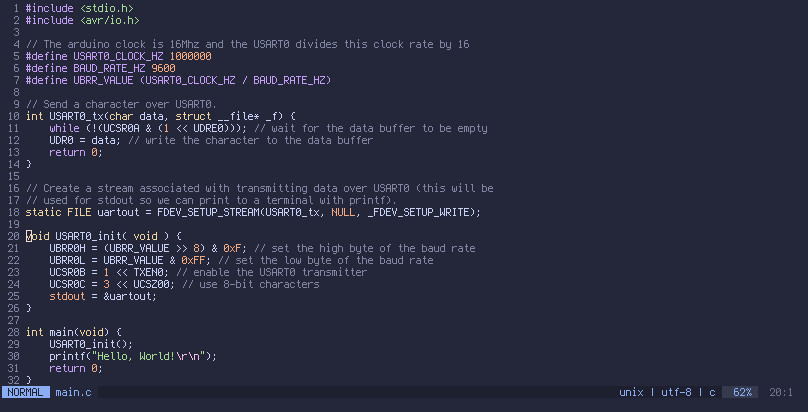

Opening main.c in an LSP-enabled editor again, the errors are gone:

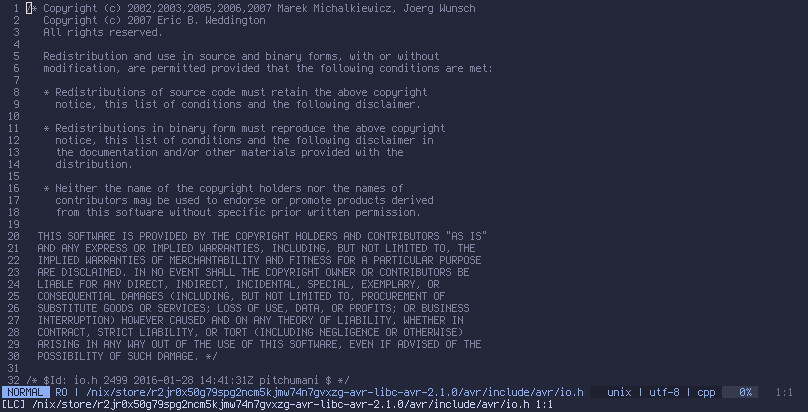

We can use LSP’s “jump to definition” feature to open <avr/io.h>. In neovim (with LanguageClient-neovim) move the cursor over <avr/io.h> and run :call LanguageClient#textDocument_definition() (obviously bind this to a key combination):

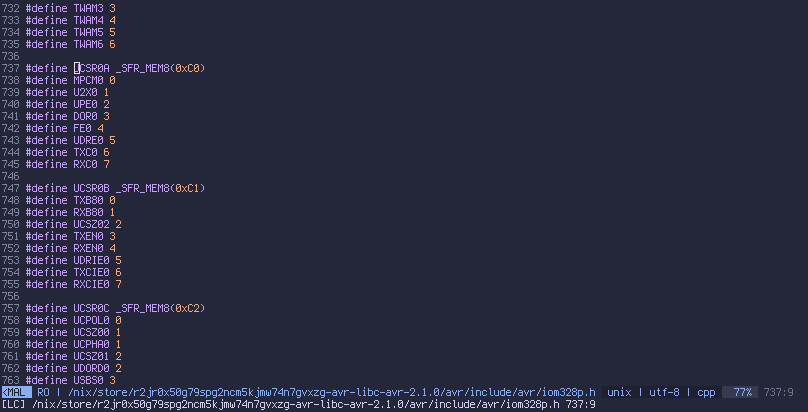

For another example, move the cursor over a symbol defined in a header, such as the UCSR0A register on line 11 of main.c:

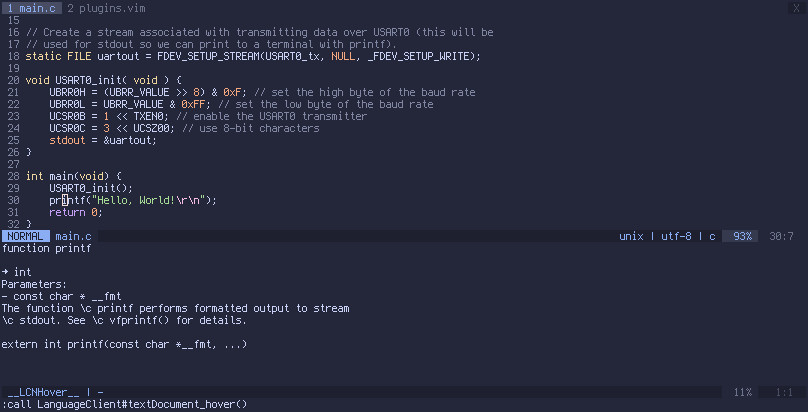

Another handy feature of LSP is showing type signatures and documentation of symbols. For example put the cursor over the call to printf in main.c and run :call LanguageClient#textDocument_hover() (again, assuming LanguageClient-neovim):

One remaining problem is that compile_commands.json contains a bunch of absolute paths and so isn’t portable; we can’t check it into version control which means we need to generate it after checking out the project. Rather than using bear directly and manually modifying the result, here is a script that automates the modification we just performed. Note that it uses the jq command which may need to be installed.

#!/bin/sh
set -euo pipefail

# Script that prints a compilation database (typically stored in
# compile_commands.json) which contains additional include paths found by
# querying avr-gcc.

include_paths() {
    # Print custom include paths used by the avr compiler to stdout, one per line.
    CC=avr-gcc
    $CC -E -Wp,-v - < /dev/null 2>&1 \
        | sed -n '/#include <...> search starts here:/,/End of search list./p' \
        | tail -n+2 \
        | head -n-1 \
        | xargs -n1 echo
}

compile_commands() {
    # Print the compilation database that would normally go in
    # compile_commands.json.
    # This would be simpler if bear supported printing to stdout:
    # https://github.com/rizsotto/Bear/issues/525
    TMP="$(mktemp -d)"
    trap "rm -rf $TMP" EXIT
    OUTPUT=$TMP/x.json
    bear --output $OUTPUT -- make --always-make > /dev/null
    cat $OUTPUT
}

# Comma-separated list of quoted include paths with "-I" prepended to each. E.g.
# "-Ifoo","-Ibar"
COMMA_SEPARATED_QUOTED_INCLUDE_ARGS=$(
    include_paths \
        | xargs -I{} echo '"-I{}"' \
        | tr '\n' , \
        | sed 's/,$//'
)

# Add the extra include paths to the compilation database and print the result.
compile_commands | \
    jq "map(.arguments += [$COMMA_SEPARATED_QUOTED_INCLUDE_ARGS])"

Put this script in tools/compile_commands_with_extra_include_paths.sh and run it with:

$ tools/compile_commands_with_extra_include_paths.sh > compile_commands.json

LED Chaser Circuit

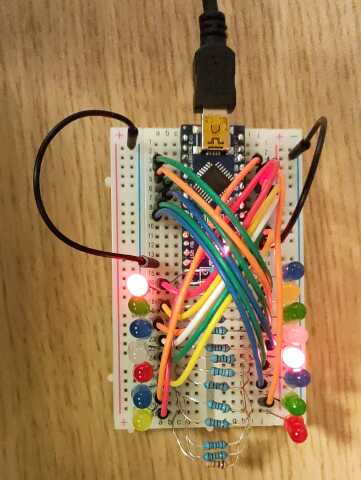

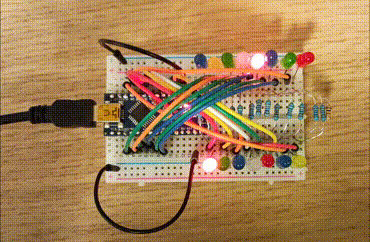

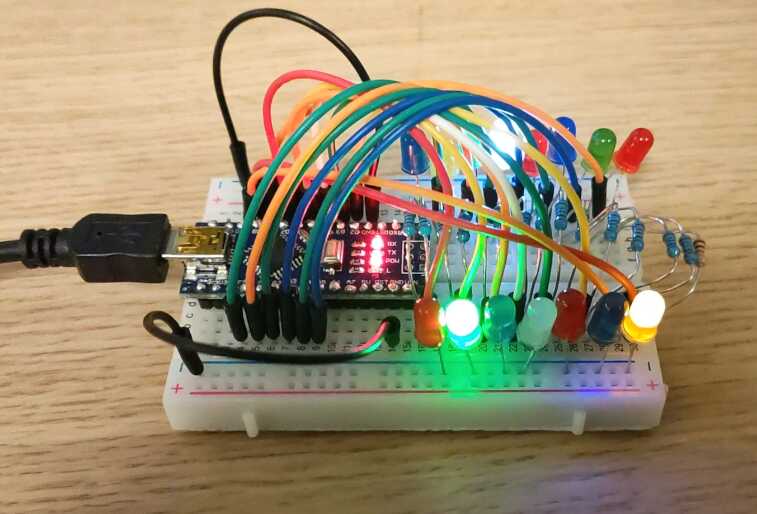

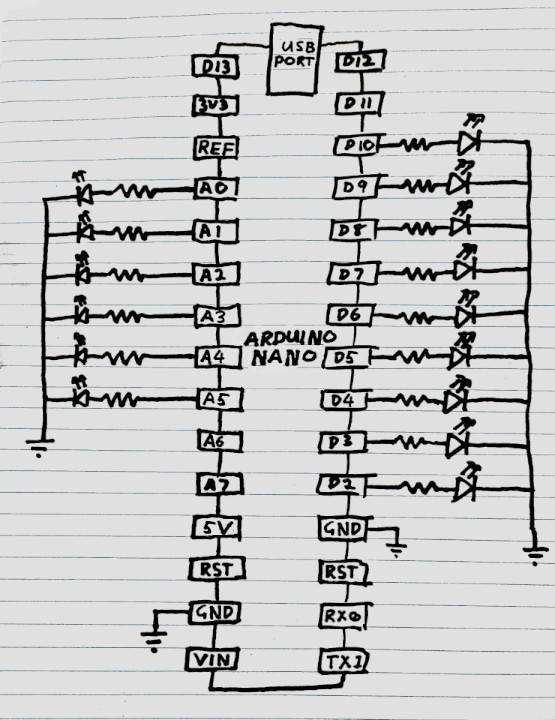

Now let’s make a simple LED Chaser circuit by attaching some LEDs to some of the digital IO pins on the Arduino.

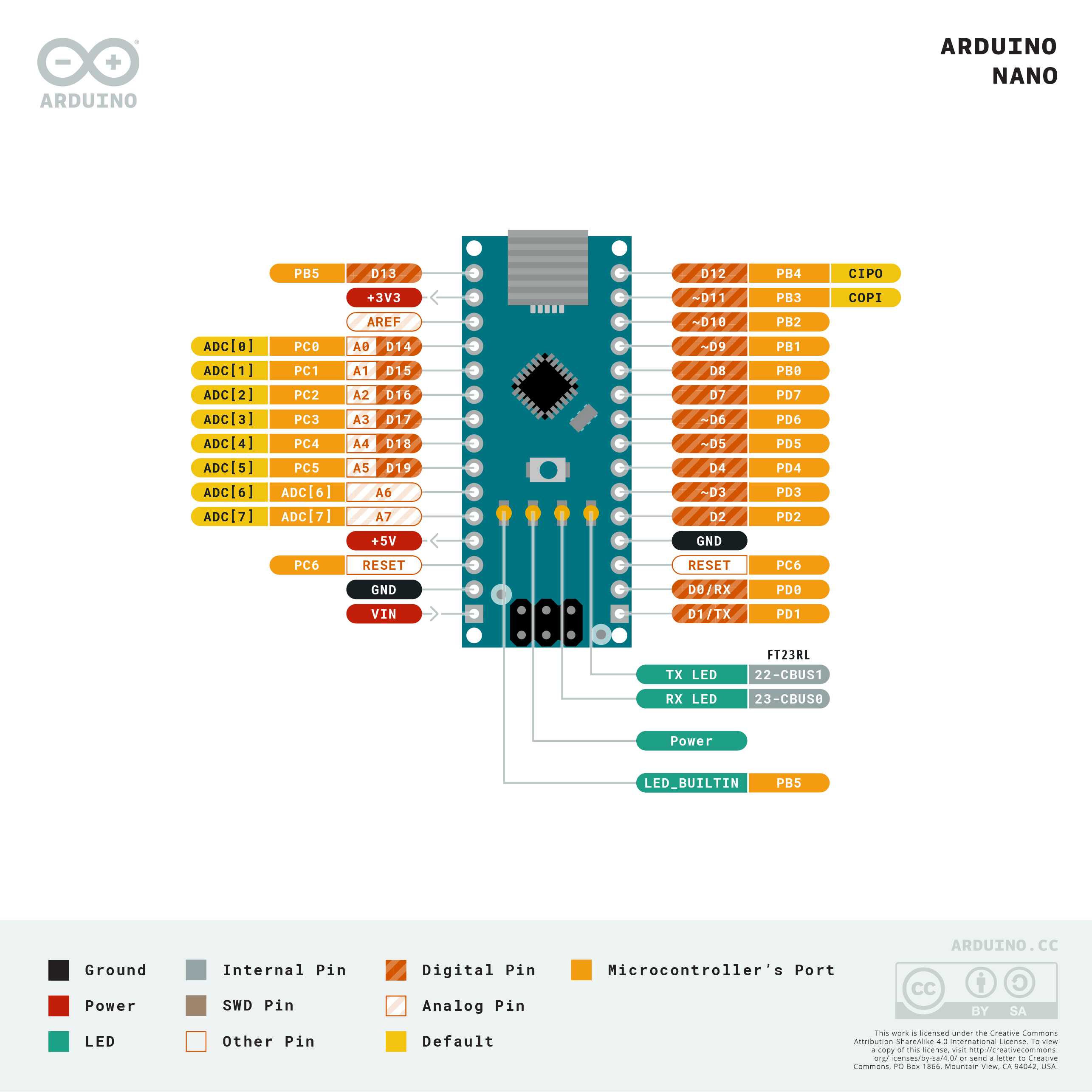

Step 1 is working out which pins we’ll be using.

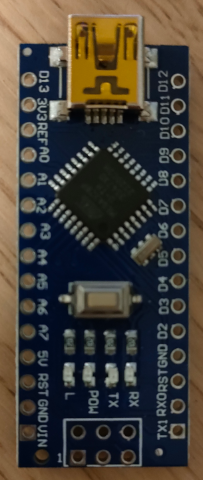

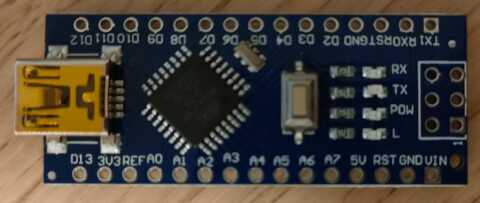

Here’s a close up of an Arduino Nano with the names of each pin visible:

For ease of reading here are the pin labels copied from the above image in a table in the same positions as they appear in the image above:

Left Side	Right Side
D13	D12
3V3	D11
REF	D10
A0	D9
A1	D8
A2	D7
A3	D6
A4	D5
A5	D4
A6	D3
A7	D2
5V	GND
RST	RST
GND	RX0
VIN	TX1

And this is the pinout from the Arduino official docs. Most pins have multiple functions. The I/O-Port functions are what we’re interested in. They are coloured orange without stripes in the following diagram. The key calls them “Microcontroler’s Port” and ATmega328P manual calls them “I/O-Port”.

Note that this diagram contains an error. The “ADC[6]” and “ADC[7]” pins have labels coloured both yellow and orange with “ADC[x]” on them but the orange labels are for I/O-Ports only so labeling them with “ADC” doesn’t make sense. We won’t be using these pins here, but I did do an experiment where I turned on all the I/O-Port pins and A6 and A7 pins didn’t turn on so they aren’t connected to an I/O-Port.

I only have enough space on my breadboard for 15 LEDs (after accounting for the Arduino’s pins and current-limiting resistors for the LEDs), so I’ve chosen 15 pins on the Arduino Nano that connect to I/O-Port pins on the microcontroller. Using the labels of pins physically printed on the Arduino board, these pins are: D2, D3, D4, D5, D6, D7, D8, D9, D10, A0, A1, A2, A3, A4, A5.

This is the circuit diagram for the LED chaser. The orientation of the Arduino is the same as in the above image, and the pins are all in the same positions and labels.

In the circuit, some pins are connected to a resistor in series with an LED. The cathode of each LED is connected to ground. The resistor is there to limit the current flowing through the pin and LED to prevent damage to each. I used 1K resistors here.

Here’s how the circuit looks on a breadboard:

LED Chaser Code

Here’s the code for the LED chaser. It’s also available on github here.

Most of the I/O-Port pins on the Arduino have multiple possible functions and must be configured by writing to various registers. All pins which can function as I/O-Port pins are initially configured as I/O-Port pins, so no explicit configuration is necessary for this example. Note however that the pins labelled TX1 and RX0 are also I/O-Port pins (Port D, pins 0 and 1). They must be explicitly configured to behave as USART pins (sending and receiving data over a serial port - this is how “Hello, World!” is printed on startup). Even though nothing is plugged into these pins, they are connected internally to the Arduino’s USB chip. The LED chaser intentionally doesn’t use this pins as if it did we wouldn’t be able to print anything over USART.

#include <stdio.h>
#include <avr/io.h>


// The arduino clock is 16Mhz and the USART0 divides this clock rate by 16
#define USART0_CLOCK_HZ 1000000
#define BAUD_RATE_HZ 9600
#define UBRR_VALUE (USART0_CLOCK_HZ / BAUD_RATE_HZ)

// Send a character over USART0.
int USART0_tx(char data, struct __file* _f) {
    while (!(UCSR0A & (1 << UDRE0))); // wait for the data buffer to be empty
    UDR0 = data; // write the character to the data buffer
    return 0;
}

// Create a stream associated with transmitting data over USART0 (this will be
// used for stdout so we can print to a terminal with printf).
static FILE uartout = FDEV_SETUP_STREAM(USART0_tx, NULL, _FDEV_SETUP_WRITE);

void USART0_init( void ) {
    UBRR0H = (UBRR_VALUE >> 8) & 0xF; // set the high byte of the baud rate
    UBRR0L = UBRR_VALUE & 0xFF; // set the low byte of the baud rate
    UCSR0B = 1 << TXEN0; // enable the USART0 transmitter
    UCSR0C = 3 << UCSZ00; // use 8-bit characters
    stdout = &uartout;
}

// Represents a single I/O-Port pin
typedef struct {
    volatile uint8_t* port; // pointer to the port's register
    uint8_t bit; // (0 to 7) which bit in the register the port corresponds to
} led_t;

// List out each pin with an attached LED in the order we want them to flash
led_t leds[] = {
    { .port = &PORTD, .bit = 7 },
    { .port = &PORTD, .bit = 6 },
    { .port = &PORTD, .bit = 5 },
    { .port = &PORTD, .bit = 4 },
    { .port = &PORTD, .bit = 3 },
    { .port = &PORTD, .bit = 2 },
    { .port = &PORTB, .bit = 2 },
    { .port = &PORTB, .bit = 1 },
    { .port = &PORTB, .bit = 0 },
    { .port = &PORTC, .bit = 5 },
    { .port = &PORTC, .bit = 4 },
    { .port = &PORTC, .bit = 3 },
    { .port = &PORTC, .bit = 2 },
    { .port = &PORTC, .bit = 1 },
    { .port = &PORTC, .bit = 0 },
};

// The number of LEDs
#define N_LEDS (sizeof(leds) / sizeof(led_t))

// Turn on a single LED without affecting the state of the other LEDs
void led_on(led_t led) {
    *led.port |= 1 << led.bit;
}

int main(void) {
    USART0_init();
    printf("Hello, World!\r\n");

    // Set the data direction for each I/O-Port pin to "output".
    // Each DDRx register controls whether each pin in I/O-Port x is
    // an input pin (0) or an output pin (1).
    DDRB = 0xFF;
    DDRC = 0xFF;
    DDRD = 0xFF;

    // The starting points for the indices into the global `leds` array
    // that will be on. We'll have 3 lights on at a time in a rotating
    // pattern, evenly spaced out.
    int indices[] = {0, 5, 10};

    while (1) {

        // Briefly turn off all the LEDs
        PORTB = 0;
        PORTC = 0;
        PORTD = 0;

        // Turn on just the pins at the indices, and increment each index
        // wrapping around at N_LEDS
        for (int i = 0; i < (sizeof(indices) / sizeof(indices[0])); i++) {
            led_on(leds[indices[i]]);
            indices[i] = (indices[i] + 1) % N_LEDS;
        }

        // Wait for a short amount of time before progressing
        uint32_t delay = 100000;
        while (delay > 0) {
            delay -= 1;
        }
    }

    return 0;
}

Use the same Makefile as in the previous example, then build and download the code to an Arduino with the command:

make && sudo avrdude -P /dev/ttyUSB0 -c arduino -p m328p -U flash:w:hello.elf

Remember to substitute /dev/ttyUSB0 with the device corresponding to your Arduino.

USB UART Adapter

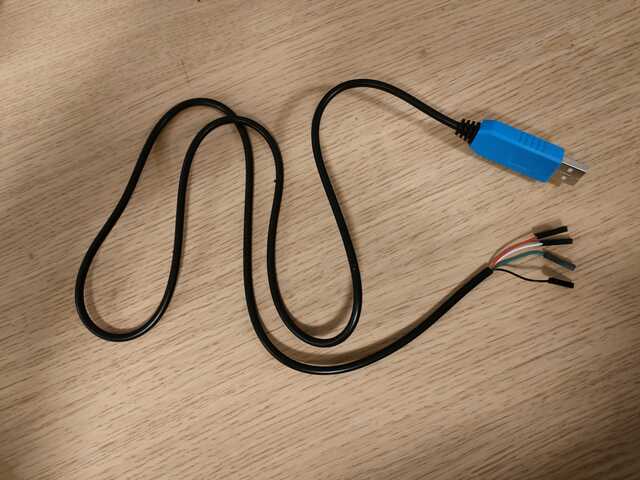

I have a bunch of these USB to UART adapters lying around from another project. It would be fun to try using one of these to talk to the Arduino directly via its header pins rather than through its USB port. We won’t be able to program it through this adapter but we will be able to power it and print over UART and see the results in picocom.

What are the 4 wires? There’s no brand name and I forget where I bought it from so I don’t know how to find documentation. However, the black wire is probably ground, and the red wire provides 5v. Of the two remaining wires, one of them is transmit (TX) and the other receive (RX). I don’t know which one is which and there doesn’t seem to be standardised colours as far as I can tell, so I’ll just guess.

Turns out the white wire is TX and the green wire is RX.

Disconnect the USB cable from the Arduino’s USB port as we should only power it from one source at a time, and we’ll be using the 5V pin on the USB to UART adapter to power it now.

I used male to male patch pins to connect the wires on the USB to UART adapter to my breadboard. Connect the wires as per this table:

UART to USB wire function	UART to USB wire colour	Arduino pin name
5v	Red	5V
Ground	Black	GND (any of them)
TX (UART end)	White	TX1
RX (UART end)	Green	RX0

I clarify “UART end” for the TX an RX wires as for example the other end of the TX wire would be labelled “RX”; the Arduino transmits data on this wire and the device at the other end of the wire (the UART to USB adapter in this case) receives that data, and vice versa.

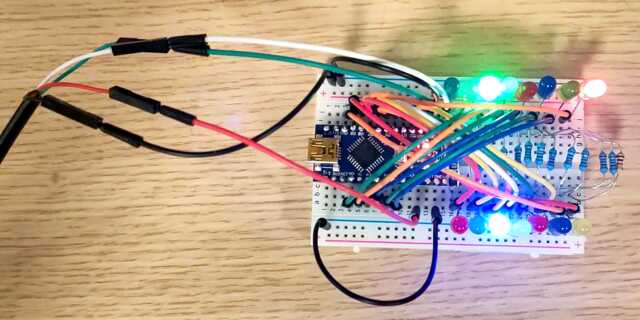

Again, disconnect the cable from the Arduino’s USB port before doing this. Here’s how it looks on my breadboard:

When you plug the USB end of the adapter into your computer it should show up as a device /dev/ttyUSBx, just like the Arduino did when we plugged it in. You can’t program the device with avrdude, but you can still connect to it with picocom to see it print “Hello, World!”.

Unlike before, connecting to the device with picocom will not cause the Arduino to reset, so you can miss the message it prints when it turns on. Just press the reset button on the top of the Arduino to restart it and you should see “Hello, World!” in the picocom session. (Resetting the Arduino does not cause picocom to disconnect as technically picocom is connected to the USB to UART adapter - not the Arduino. It just displays whatever data arrives over the TX wire no matter what it’s plugged into. In fact, if you had a magnetized needle and a steady hand…never mind).

Also note that we aren’t transmitting any data to the Arduino over UART, so you don’t even need to plug the green wire in at all.

One trick this adapter lets us perform is continuously seeing the output of the Arduino, even while programming it. Previously if we wanted to program the Arduino and see the messages it prints over UART we would need to first run avrdude to program it, then run picocom to see its output. To program it again we would have to stop picocom before running avrdude. That gets a bit annoying.

We’re going to use the USB cable for programming and the USB to UART adapter for receiving messages printed by the Arduino. To set this up, unplug the red 5v wire from the UART adapter, and plug the USB cable back into the USB port. Keep at least the white and black wires attached from the setup above - just make sure the red wire is unplugged as we’ll be powering the Arduino with the USB cable once again. Now with both the USB cable (the one attached to the Arduino’s USB port) and the USB to UART adapter both plugged into your computer, you should see devices /dev/ttyUSB0 and /dev/ttyUSB1 corresponding to both of these devices. You can use dmesg to determine which one is which by unplugging and re-plugging them and watching the output of dmesg, or just see which one can be used to program the device with avrdude. Connect picocom to the USB to UART adapter, and program the device with avrdude via the USB cable, and you’ll no longer need to close picocom to reprogram the Arduino!

Here’s an example of how this might look.

In one terminal:

$ sudo avrdude -P /dev/ttyUSB0 -c arduino -p m328p -U flash:w:hello.elf

And in the other terminal:

$ sudo picocom /dev/ttyUSB1

Depending on the order you plugged things in, the ttyUSB0 and ttyUSB1 in the above commands might have to be swapped.

Power Options

There are a couple of additional ways you can power the arduino besides the two mentioned above. When your Arduino is deployed in whatever wonderful project you’re planning to use it for, probably there won’t be a USB cable or USB to UART adapter attached to it.

Power solutions will depend on what power supply is available in your project. Mine has a 12v DC power supply, so here are my options:

Powering from a DC 12v supply via the VIN pin

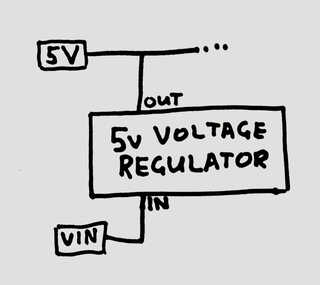

The simplest solution is to attach the 12v DC supply directly to the VIN pin on the Arduino. Between the VIN and 5V pins on the Arduino there is a 5 volt voltage regulator (specifically, a LM117IMPX-5.0 - see the Arduino Nano schematics here).

This means that you can provide a range of voltages to the VIN pin and the voltage regulator will provide a steady 5v to the rest of the board. All the advice I can find recommends between 7 and 12 volts be provided to this pin. Too little and the voltage regulator might not be able to provide 5v at its output. Too much and it could overheat.

Powering from a DC 12v supply with a 78L05 voltage regulator

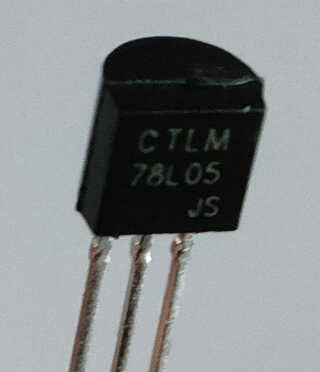

You can also power the Arduino directly from its 5V pin, bypassing the built-in voltage regulator. To do this, I’ll attach an external voltage regulator - a 78L05, like this one:

It looks like a transistor but it’s not. The right pin is the input which I’ll attach to the 12v supply. The middle pin is ground. The left pin is the output which I’ll connect to the 5V pin of the Arduino.

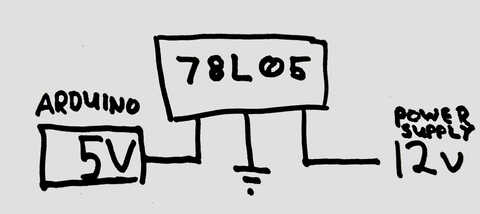

This shows how the voltage regulator will be attached between the 12v power supply and the Arduino, via its 5V pin:

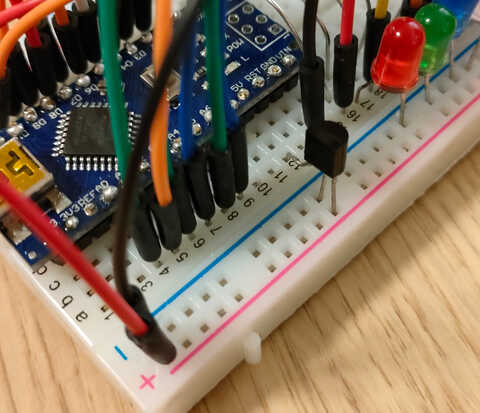

Here it is on my breadboard:

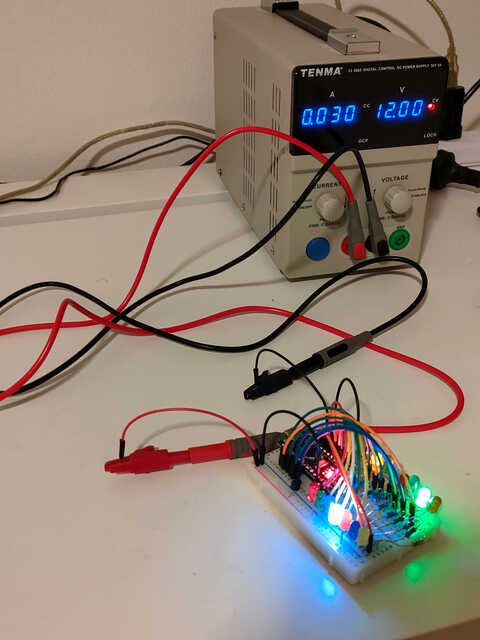

And here’s proof that it didn’t immediately catch fire when I turned it on!
