7 Day Roguelike 2023: Procedural Generation

I spent this evening making a procedural generator for the shape of river and choosing points along the river to place settlements. While I iterate on procedural generation I’m working in a separate project to the main game so I don’t need to deal with the complexities of integrating the generated levels into the game while I’m also figuring out how level generation will work at all.

Here’s the debug output of the terrain generator so far showing the shape of the river and the points where settlements will go.

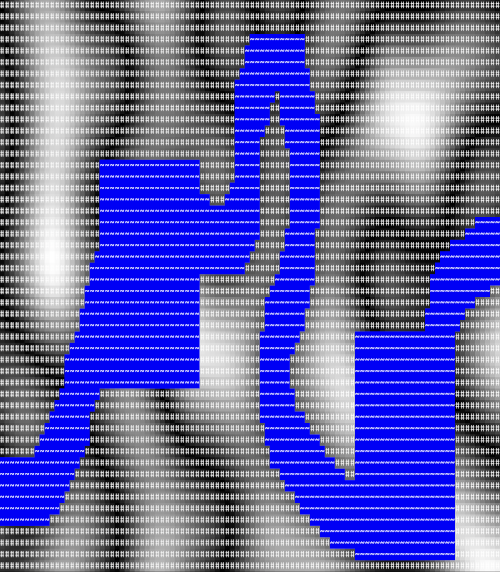

Debug image showing a procedurally-generated river

The algorithm starts with Perlin noise and uses Dijkstra’s algorithm to find a path from a point on the left side of the screen to a point on the right side of the screen preferring noise values closer to 0. Then there are several post-processing steps on the chosen path that check for closed-off sections of land created when the river is made wider, and finds point that are good candidates for settlements so that when settlements are added it doesn’t connect multiple points of the river.

The plan for tomorrow is to generate the settlements, the starting town, and the ocean, and integrate this into the game so that I can test out driving a boat around the generated river.
